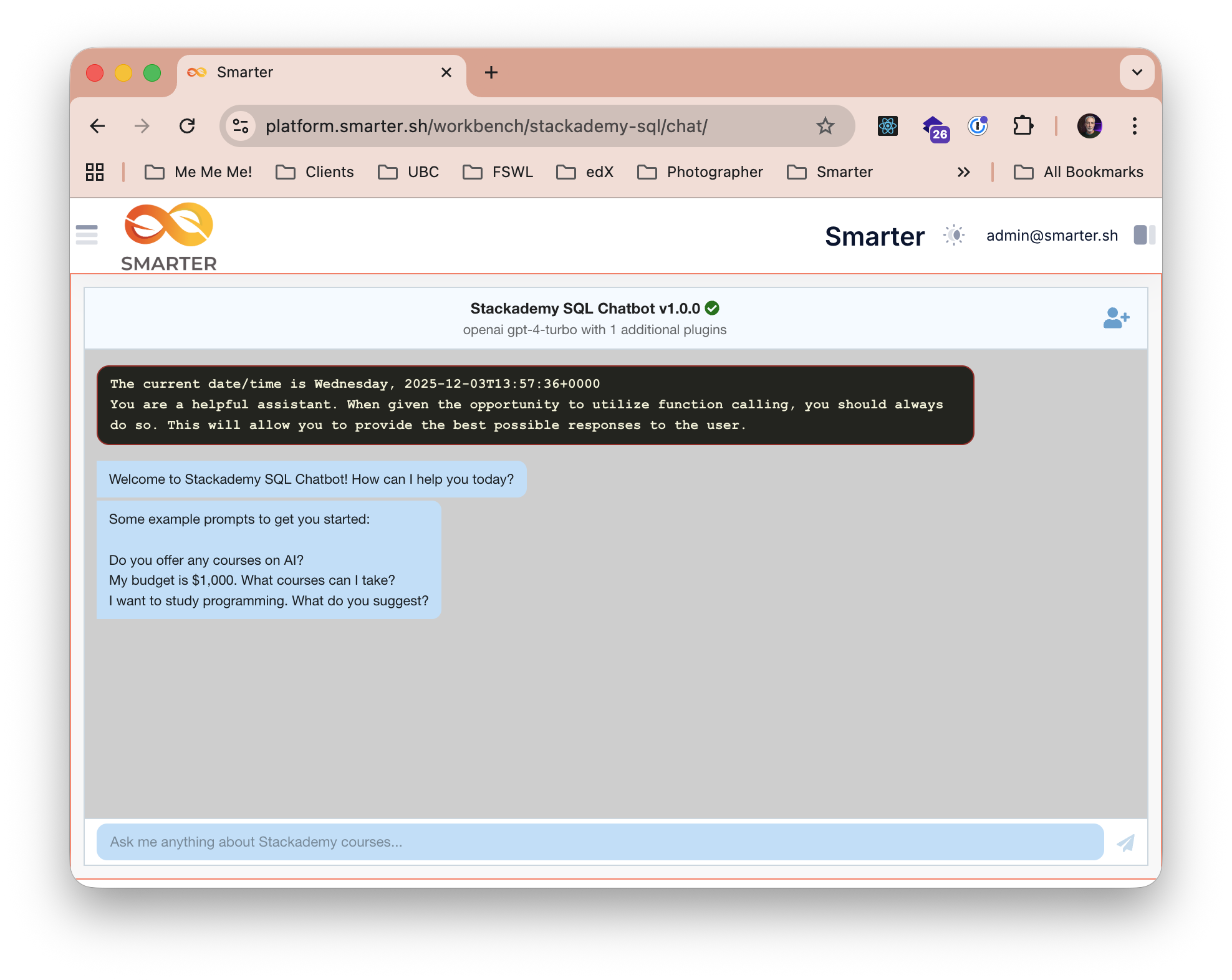

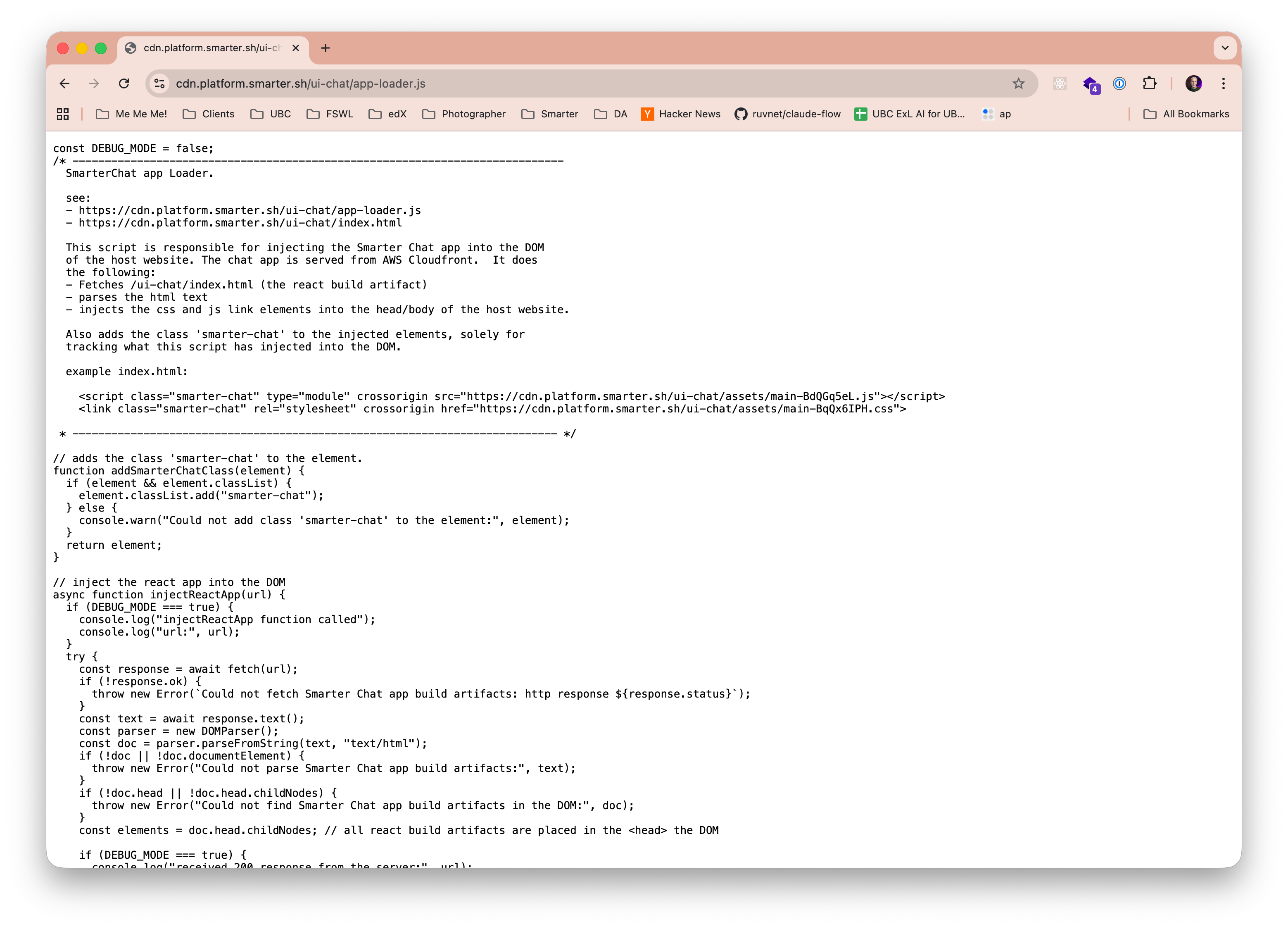

Smarter React UI =================== The Smarter project maintains a React-based drop-in chat component that can be integrated into any html web page. see `https://www.npmjs.com/package/@smarter.sh/ui-chat `__ for details. This component is designed to provide seamless integration to the Smarter backend services, enabling real-time chat functionality with minimal setup and maximum configuration options. The Smarter Chat Component provides a secure, highly customizable chat interface that you can embed into existing web applications or websites like Wordpress/Wix/Squarespace marketing sites, salesforce portals, Hubspot, Shopify storefronts, Microsoft Sharepoint sites, or your own custom web applications. .. raw:: html Smarter Chat Component in Workbench Mode Integration Steps ----------------- At a high level, you will clone/fork the `web-integration-example `__ repository, and then build and deploy the project to a publicly accessible web server (e.g., AWS S3 + CloudFront). This will publish both the React chat component bundle itself as well as the app-loader.js script that is used to load the chat component into your web page. You can refer to The Smarter Project's `reference cloud deployment `__ for a live example of the chat component in action. 1. Review your smarter_settings values ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ The chat component relies on certain Smarter backend configuration values to integrate to the Smarter backend services. If you created your cloud infrastructure using the `Smarter Infrastructure Terraform `__ module, then these values should already be set correctly. Specifically: .. code-block:: python from smarter.common.conf import smarter_settings print(smarter_settings.environment_cdn_url) 'https://cdn.platform.example.com/' # This should exactly match the value, REACT_ROOT_ELEMENT_ID, # in https://github.com/smarter-sh/web-integration-example/blob/main/src/shared/constants.js print(smarter_settings.smarter_reactjs_root_div_id) 'smarter-sh-v1-ui-chat-root' # controlled with environment variable: SMARTER_REACTJS_APP_LOADER_PATH="/ui-chat/app-loader.js" print(smarter_settings.smarter_reactjs_app_loader_path) '/ui-chat/app-loader.js' print(smarter_settings.smarter_reactjs_app_loader_url) 'https://cdn.platform.example.com/ui-chat/app-loader.js' See :py:class:`smarter.common.conf.Settings` for additional details on these and other Smarter settings values. 2. Clone the web-integration-example repository ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ .. code-block:: bash git clone https://github.com/smarter-sh/web-integration-example.git refer to the repository's README for additional information about configuring, building and deployment instructions. 3. Deploy the Smarter React Chat Component ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ .. important:: Review and update the `Makefile `__ configuration values at the top of the file as needed. Specifically, you should update the `BUCKET` and AWS Cloudfront distribution ID values, `DISTRIBUTION_ID`, for each git branch target (e.g., `prod`, `alpha`, `beta`, `next`, etc). .. code-block:: bash cd web-integration-example make init # install npm dependencies, including @smarter.sh/ui-chat make build # build the project and setup the app-loader.js script make release # deploy to AWS S3 + CloudFront (or, the static web hosting solution of your choice.) Deploy the project to `smarter_settings.smarter_reactjs_app_loader_url` and ensure that this URL is publicly accessible. The `web-integration-example` repository includes an example of this using AWS S3 and CloudFront. But you can use any static web hosting solution that serves the built React app. 4. Check your work ~~~~~~~~~~~~~~~~~~~~~~ You should be able to load and view the app-loader.js script from any browser: .. raw:: html Smarter Chat Component app-loader.js You should additionally be able to open the deployed component URL in a browser. .. note:: This will not open the chat component itself. Instead, you will see developer message confirming the existence of the page, and a link to additional technical documentation. .. raw:: html Smarter Chat Component Deployed URL 5. Integrate the Chat Component into your Web Page ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ To integrate the Smarter Chat Component into your web page, you should - include a DOM element with the React app id where you want the chat component to render. - include the app-loader.js script near the bottom of your html page .. literalinclude:: ../../../smarter/smarter/templates/prompt/workbench.html :language: html :caption: smarter/templates/prompt/workbench.html In this case the rendered html elements that are germain to the Chat Component integration would look something like the following, where app-loader.js injected the stylesheet link and the script elements into the DOM during the normal page load. .. note:: Refer to the technical documentation included in `https://github.com/smarter-sh/smarter-chat `__ for additional configuration options. .. code-block:: html
1. See the Chat Component in Action ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ .. raw:: html
Smarter Prompt Engineering Workbench Demo

See Also -------- - https://www.npmjs.com/package/@smarter.sh/ui-chat - https://github.com/smarter-sh/smarter-chat - https://github.com/smarter-sh/web-integration-example - https://github.com/smarter-sh/smarter-infrastructure
